Description

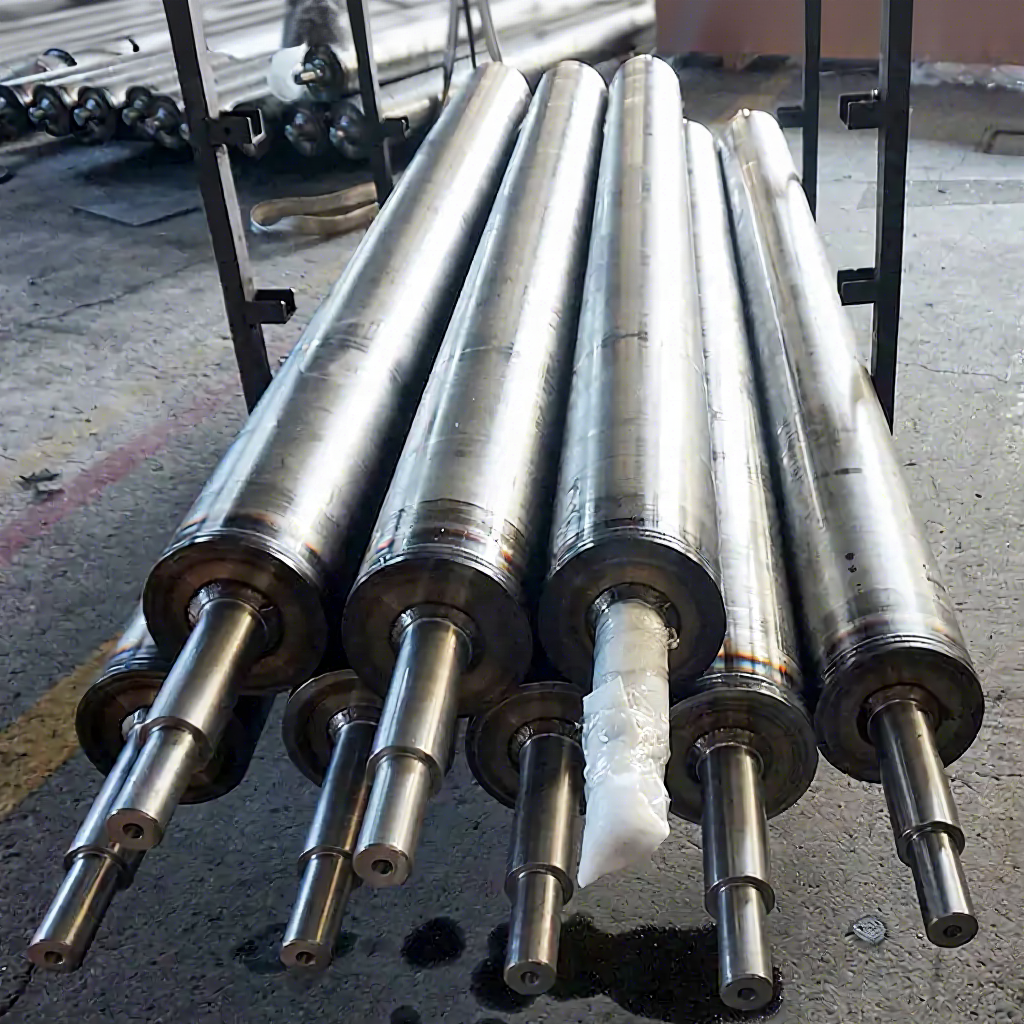

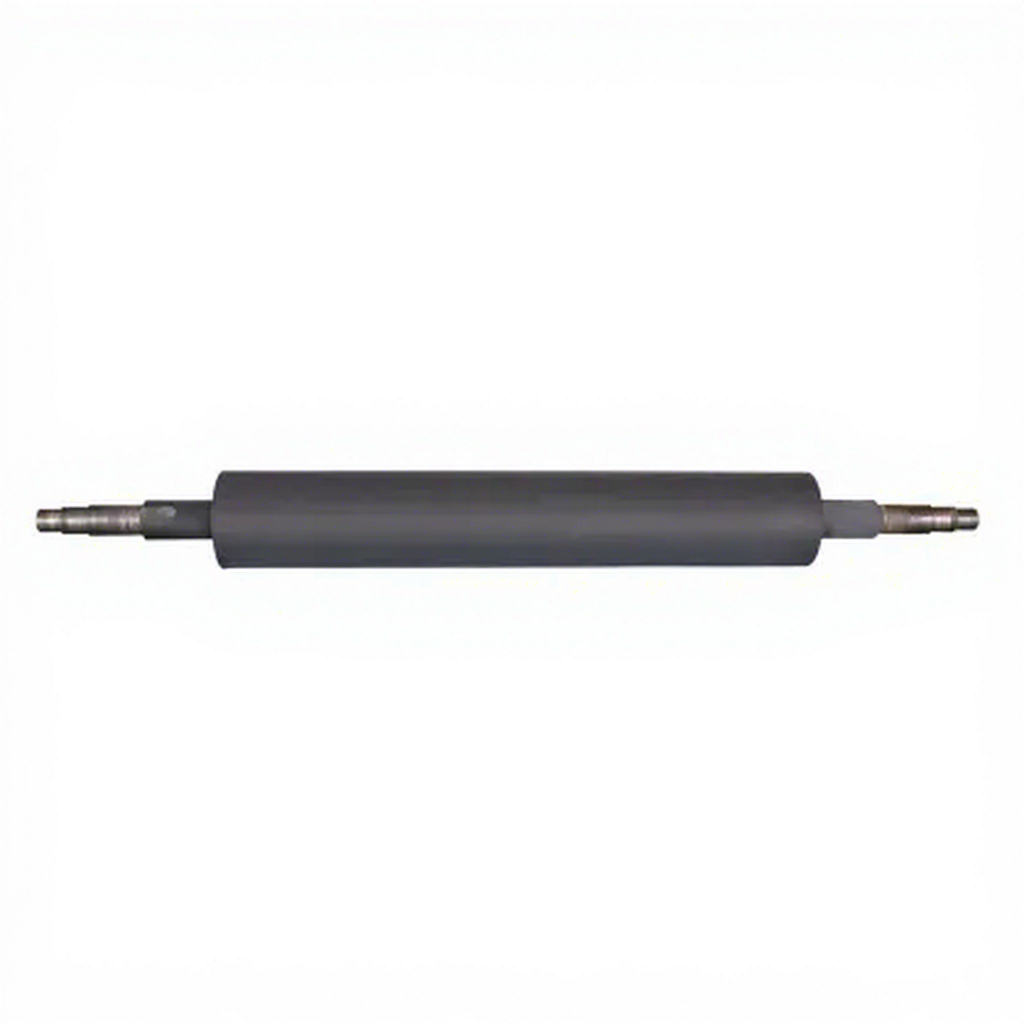

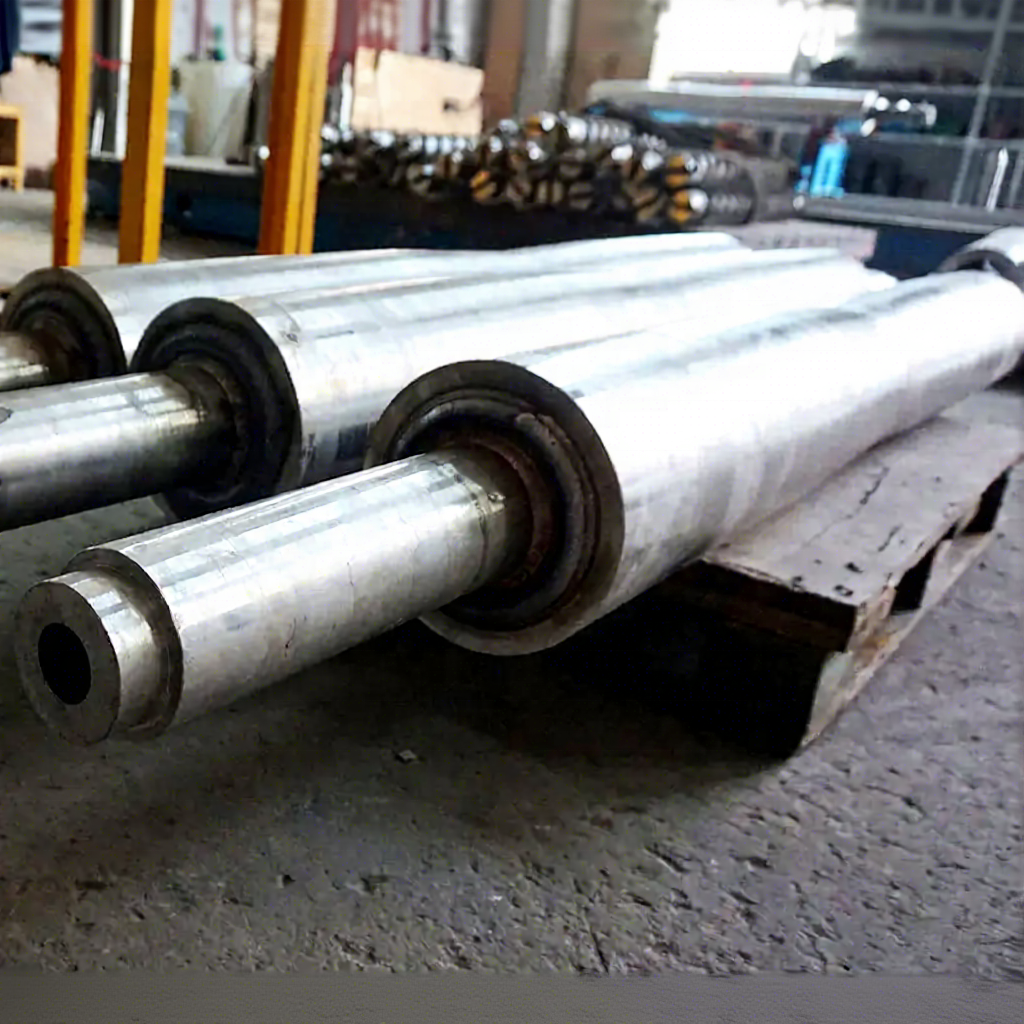

Furnace Rollers
Furnace rollers are critical components within continuous annealing furnaces, serving as the primary mechanism for transporting industrial charges through the heating process. Their operational condition is a decisive factor in maintaining production continuity and efficiency. These rollers are engineered to facilitate the seamless movement of plates, bars, and other materials, ensuring a consistent process flow and high-quality heat treatment results.
Technical Specifications
| Product Name | Furnace Roller |
| Material | High-nickel and high-chrome heat-resistant alloys, cobalt-base alloys (HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni, 1.4865, 1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879) or custom specifications. |
| Application | High-temperature environments (800°C to 1200°C); specialized for steel mills, continuous annealing lines, and industrial heat treatment furnaces. |
| Manufacturing Process | Barrels/tubes are produced via centrifugal casting followed by precision machining. Shafts/journals are forged, welded, and machined according to technical drawings. |
| Standards | ANSI, ASTM, ASME, DIN, GB |
| Certification | ISO 9001 Quality Management System |
Operational Performance
1. Surface Integrity: In silicon steel continuous annealing furnaces, the quality of the furnace bottom roll is vital for product surface finish. Unlike traditional graphite or ceramic coatings—which are prone to oxidation, nodulation, and spalling—our advanced rollers ensure a stable, defect-free production cycle.
2. Quartz Ceramic Advantages: Our quartz ceramic hollow rollers offer high mechanical strength, superior high-temperature resistance, and minimal thermal expansion. Their excellent chemical stability and fine surface finish effectively prevent nodulation, significantly reducing maintenance frequency and improving the surface quality of steel strips.
3. Extended Service Life: Designed for long-term durability, these rollers provide a service life 3 to 5 times longer than standard carbon sleeves. Additionally, rollers can be reprocessed and reused, leading to a substantial reduction in production costs.
4. High Temperature Capacity: Capable of operating at temperatures up to 1100°C, these rollers are ideal for high-grade silicon steel production lines.
5. Structural Reliability: We provide optimized structural designs to ensure high-quality assembly and reliable performance, tailored to the specific operational requirements of each furnace unit.
