Description

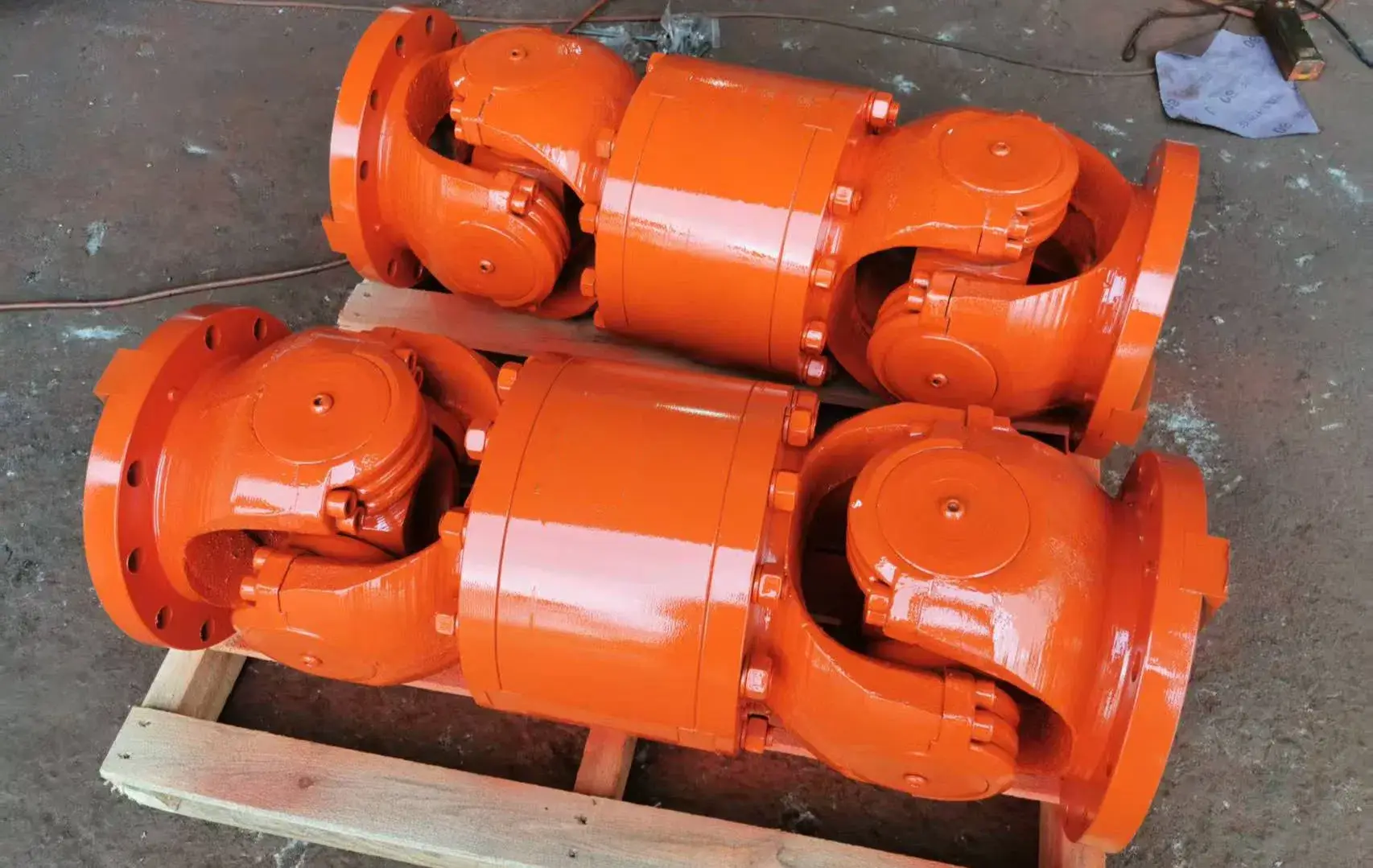

SWC-BH Standard Flex Welding Type Universal Couplings

Standard welded shaft type with length compensation. Features structure that allows for non-coaxial angles or large axial movement of two equiangular continuous rotary speeds, reliably transferring torque and motion. These are used in steel mill machinery, paper machinery, straighteners, ship propulsion, pumps, amusement rides, and wastewater treatment.

Model:

Tactical diameter: 58 mm – 550 mm

Nominal torque: 0.15kN. M – 710kN. M

Axis angle: 22, 25, 15 degrees

Connection: Keyway or Bolts

Dimensions:

Note: D=Tactical Diameter; Tn=Nominal Torque; Tf=Alternating Fatigue Torque; =Axis Angle; Ls=Telescopic Length; Lmin=Compressed Length;

Features:

1. Complete supply chain system providing over 1000 spare parts.

2. Elastomer connecting in the middle.

3. Absorbs vibration and compensates for radial, axial, and angular deviation.

4. Oil resistance and electrical insulation.

5. Identical characteristics for clockwise and anticlockwise rotation.

Types:

Available universal joint shafts include: Welded shaft type with length compensation; Short type with length compensation; Short type without length compensation; Long type without length compensation; Double flange with length compensation; Long type with large length compensation; Super short type with length compensation.
